RICHPLAT ORTHO®
Platelet Rich Plasma System
SYSTEM SPECIFICATIONS
SYSTEM SPECIFICATIONS
RICHPLAT ORTHO® PRP System
Specifications
Closed-system Kit: Mechanically prevents the transfer of environmental pollutants to the product and/or device, as well as the accidental exit of the PRP. This minimizes the risk of any type of contamination of the PRP and ensures the quality of the product1
- Low blood draw volume*:
RichPlat Ortho PRP 20 – 18mL of whole blood collected2,a
RichPlat Ortho PRP 40 – 36mL of whole blood collected2,a
- Final concentrated PRP volume: avg. 8mL per concentrating tube in the PRP kit4
- 99% reduction in red blood cells in the final concentrated PRP collection4,b
*Low blood draw is relative in comparison to several other PRP Systems currently commercially available
a. RichPlat Ortho PRP 20 – 20mL of anticoagulated whole blood (18mL whole blood + 2mL ACD-A).
RichPlat Ortho PRP 40 – 40mL of anticoagulated whole blood (36mL whole blood + 4mL ACD-A).
b. Testing was conducted immediately (Time=0hr) after the preparation of the concentrated PRP

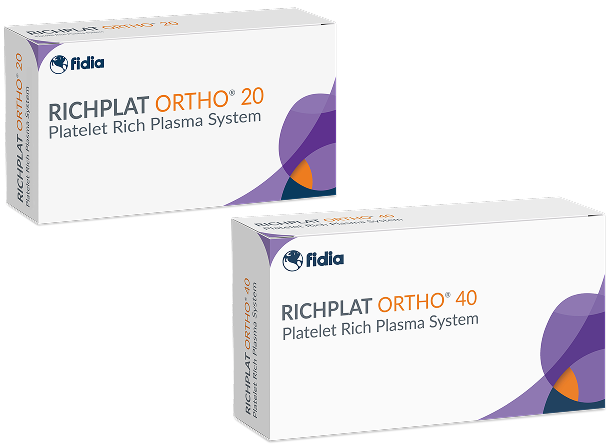

EACH RICHPLAT ORTHO® PRP KIT CONTAINS:
| KIT CONTENTS | RICHPLAT ORTHO® PRP 20 | RICHPLAT ORTHO® PRP 40 |
|---|---|---|
| Blood Collection Set | 1 ‑ 20 mL syringe | 1 ‑ 50 mL syringe |
| Blood Collection Safety Needle |
1 ‑ 21G | 1 ‑ 21G |
| Concentrating Kit | 1 ‑ 20 mL tube | 2 ‑ 20 mL tube |
| Counterbalance Tube | 1 | Not required |
BLOOD COLLECTION SET†
Safety needle
Syringe
Patient ID Label
Syringe cap
† For the RICHPLAT ORTHO® 20 PRP SYSTEM, this will be a 20mL syringe.
For the RICHPLAT ORTHO® 40 PRP SYSTEM, this will be a 50mL syringe
concentrating kit‡
1mL syringe
5mL Syringe &
Patient ID label
10mL Syringe &
Patient ID Label
Sterile Drape
Syringe caps
PRP Tube
& Patient ID Label
Chart Label
Counterbalance tube
‡ The RICHPLAT ORTHO® 40 PRP SYSTEM includes 2 Concentrating Kits.
The counterbalance tube is only included in the RICHPLAT ORTHO® 20 PRP
System
The following accessories are required to produce PRP using the RICHPLAT ORTHO®
Platelet Rich Plasma System (supplied separately)
| REQUIRED ACCESSORIES (SUPPLIED SEPARATELY) | RICHPLAT ORTHO® PRP 20 |
RICHPLAT ORTHO® PRP 40 |
|---|---|---|
| Anticoagulant Citrate Dextrose Solution A, (ACD-A) | 2mL | 4mL |
| 10% Calcium Chloride (CaCl2 10%) solution for bone graft handling (optional) | 0.05mL CaCl2 for every 1ml PRP obtained Ex: avg 8mL PRP per PRP tube = 0.4mL CaCl2 |
|
| A general‑purpose centrifuge (e.g., Drucker Boost2 Flex) | 1 | 1 |
Please refer to the RichPlat Ortho® PRP System Instructions for Use for the full list of additional accessories needed to complete the procedure.

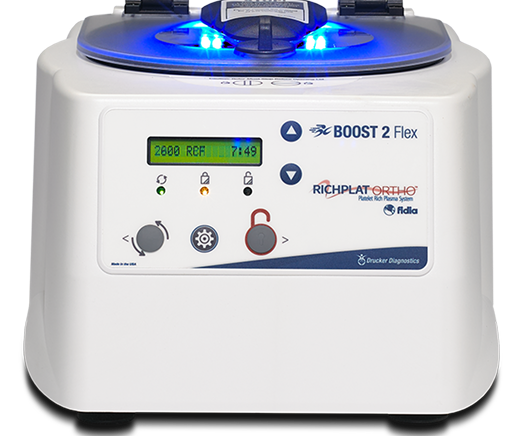

BOOST 2 Flex Ultra Compact PRP Centrifuge
- The smallest centrifuge specifically designed for PRP preparation: Requires just 1.35 square feet of counter space3
- Pre-programmed for one-touch spin—minimizes risk of error in centrifugation
- Locks to just one setting, making technicians’ work easy, safe, and simple
- Easy to monitor: Process samples more efficiently with LED lid lighting3
- Shows RPM and remaining spin time on the digital display
- Rapid 8-minute centrifuge spin time2
- Safe and durable, with brushless, CoolFlow system maintaining sample temperature, imbalance protection, and heavy-duty guard bowl with shatterproof lid, which can only be opened when the centrifuge’s rotor is stopped3
- Ready-to-run horizontal rotor, 2 tube holders, buckets, and a 2-year warranty included3
- Simple and intuitive setup in your office
- Complete instructions for use, operations guide, and safety tips with troubleshooting to keep your system running day after day, procedure after procedure
- Designed, built, and supported in the USA by Drucker Diagnostics, for years of worry-free operation
BOOST 2 Flex TECHNICAL Specifications
Speed/G-Force
2000 RPM, 600g
Dimensions
(W x D x H)
12 x 14 x 9 in
(31 x 36 x 23 cm)
Weight (lbs.)
14
Power
95 to 253 V – 50/60 Hz

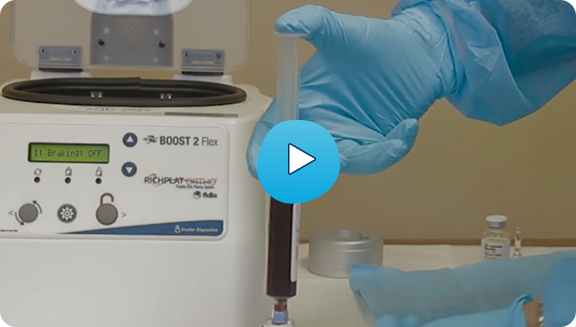

Get useful information and support for the RICHPLAT ORTHO® PRP System, including instructions for use, helpful tips, and troubleshooting resources.
Rx Only
Indications for Use
The RICHPLAT ORTHO® Platelet Rich Plasma System is designed to be used for the safe and rapid preparation of autologous platelet rich plasma (PRP) from a small sample of peripheral blood at the patient’s point of care. The PRP is mixed with autograft and/or allograft bone prior to application to a bony defect for improving handling characteristics.
References:
1. Spanish Agency for Medications and Health Products (AEMPS: https://www.aemps.gob.es).
2. RICHPLAT ORTHO® Platelet Rich Plasma System Instructions for Use.
3. Drucker Diagnostics. BOOST 2 Flex datasheet.
4. Data on File, Fidia Farmaceutici S.p.A, Italy
